Carbon Film Resistors
Carbon film resistors: suitable for various AC and DC electronic circuits.
Product features: complete power and resistance specifications, large load power, wide resistance range, small temperature coefficient, use range, and meet ROHS requirements.
Product scope of application: suitable for all kinds of AC and DC electronic circuits.
- Introduction
- Parameter
-
The Main Technical Indicators Of The Product
Product Number Rated Power Resistance Range Resistance Accuracy±% Temperature Coefficient±PPM/℃
CF 1/16W / 1/8W 1/6W 0.1Ω～10M
2、5
Special requirements can be
negotiated and ordered
1. Rx ＜ 100K
＜350~500
100K＞ Rx ＜1M
＜ 700
3. Rx ＞1M
＜ 1500
CF 1/16W / 1/8WS 1/4W CF 1/16W / 1/8WS 1/2W CF 1W / 1WS
1w CF 2W / 2WS
2w CF 3W / 3WS
3w CF 5W / 5WS
5W -

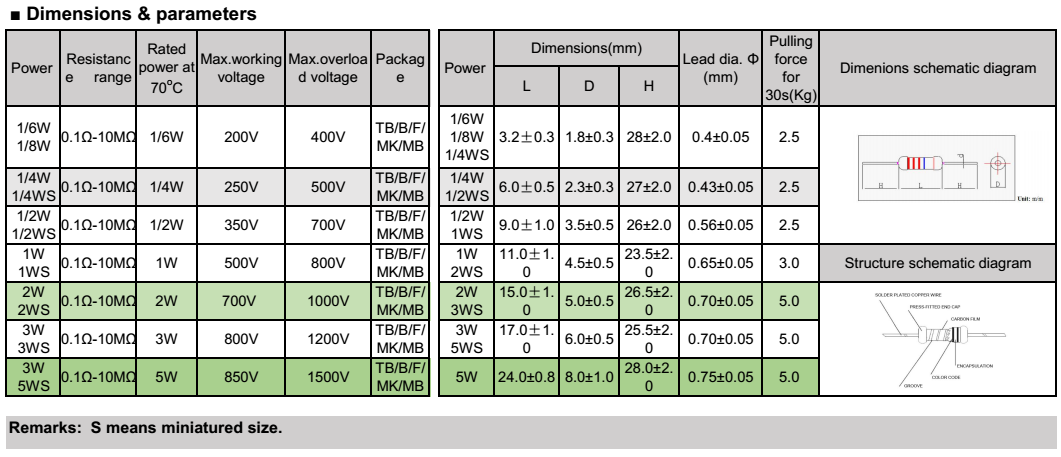

Dimensions And Parameters:

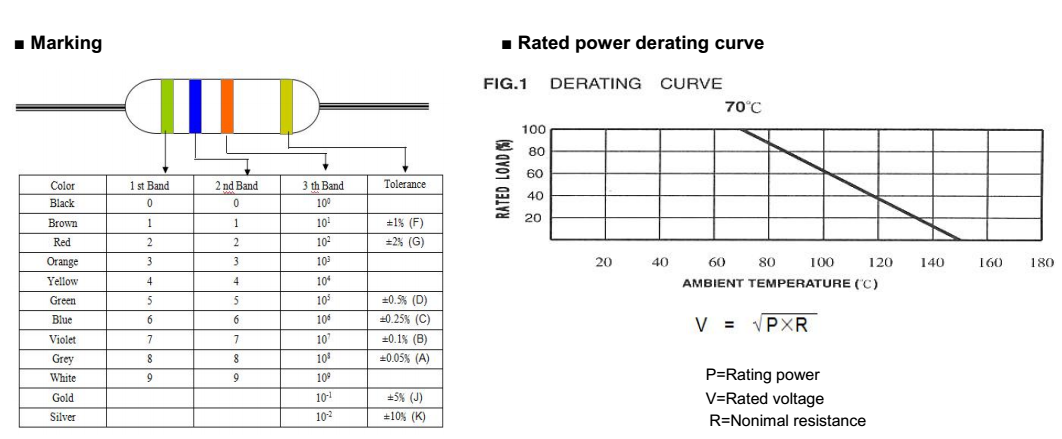

Color Circle And Power Attenuation Curve:

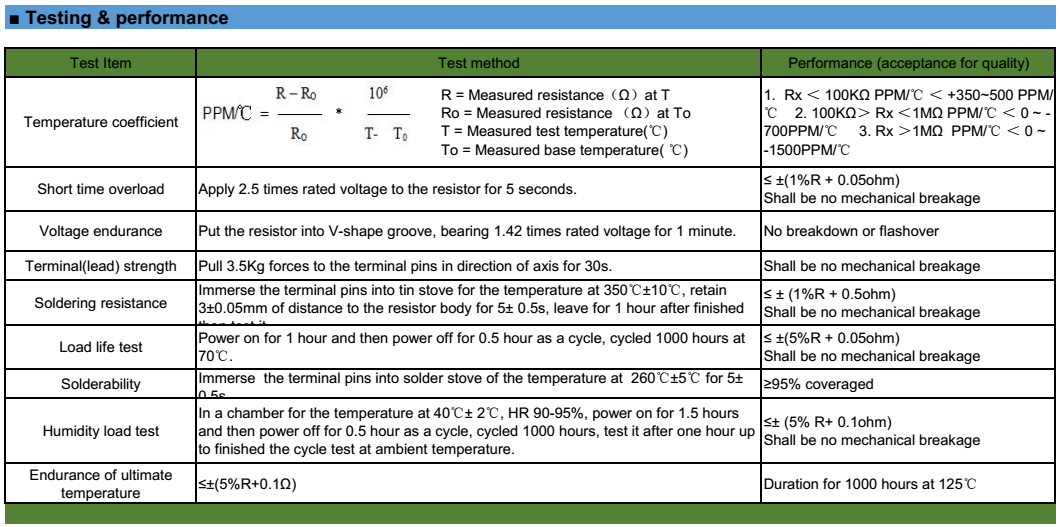

Testing and Performance:
