Fuse Blown Wire Winding Resistance
Fuse fuse winding resistance: suitable for current-limiting protection circuits such as current overload protection circuits and transformer short-circuit protection.
Product features: It is made of alloy wire, small size, strong load power, high stability, low temperature coefficient, excellent flame retardant performance, fuse insurance function, easy to install, and meet ROHS requirements.
Product scope of application: suitable for communication systems, UPS power supplies, mobile power supplies, special power LED energy savers, automation equipment, instruments, meters and various current overload protection circuits, transformer short-circuit protection and other current-limiting protection circuits.
- Introduction
- Parameter
-
The Main Technical Indicators Of The Product
Product Number Rated Power Resistance Range Resistance Accuracy±% Fuse Characteristics Temperature Coefficient±PPM
FKNP 1/2W 1/2W 0.1Ω～60Ω
2、5
Special requirements can
be negotiated and ordered
Maximum Fusing Power
Maximum Fusing Time
50-3500
FKNP 1W / 1WS 1W 0.1Ω～150Ω
36 Times
60 Seconds
FKNP 2W / 2WS 2W 0.1Ω～200Ω
Fuse requirements are customized
according to customer requirements
FKNP 3W / 3WS
3w 0.1Ω～350Ω
FKNP 5WS
5w 0.1Ω～550Ω
-

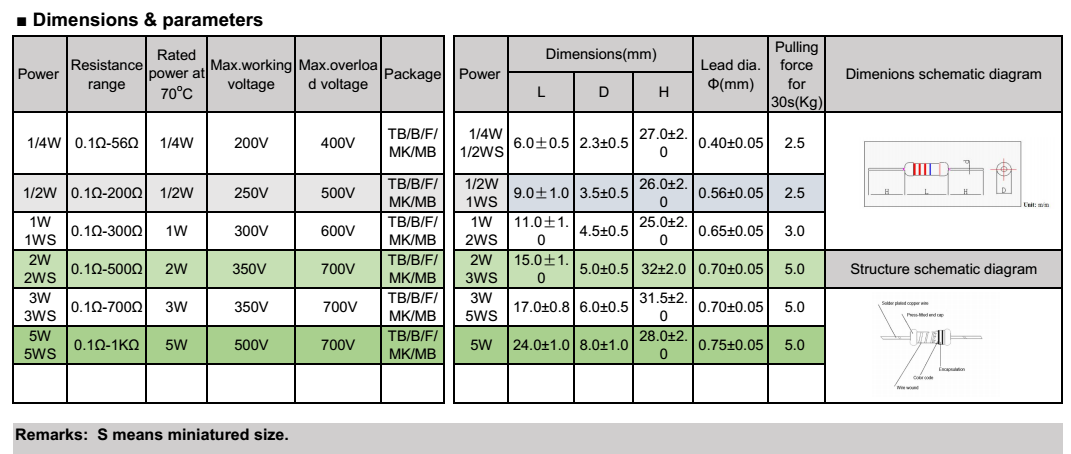

Product Size And Parameters:

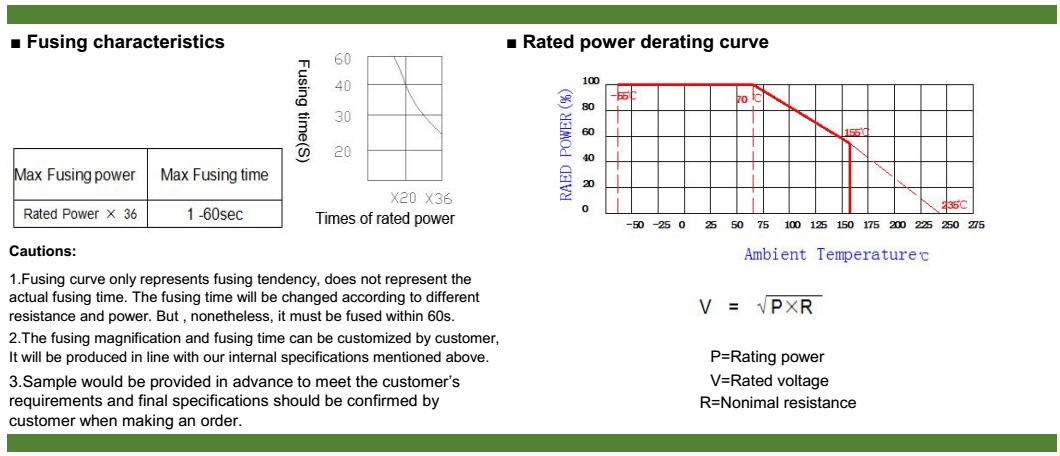

Insurance Characteristics And Power Attenuation Curve:

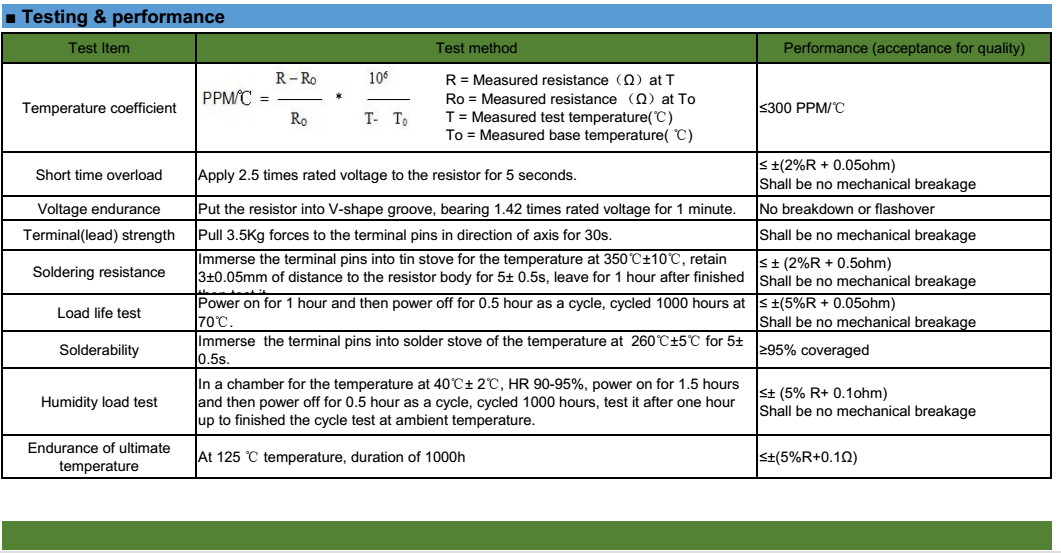

Testing And Performance:
